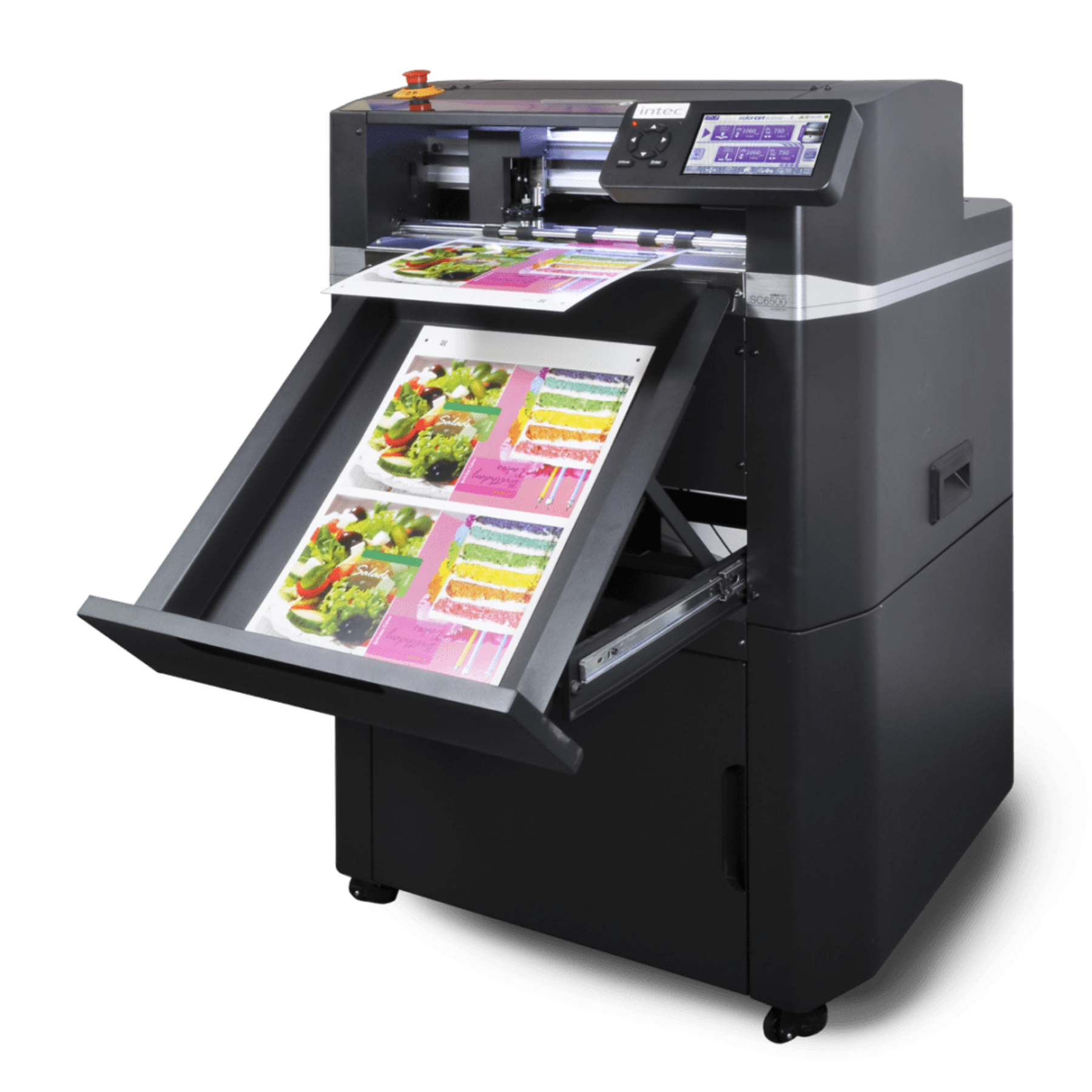

Intec ColorCut SC6500 Automatic Sheet Cutting & Creasing
ColorCut SC6500 automatic cutting & creasing machine, featuring rapid production and highly efficient ultra-low energy consumption.
Two operation modes: DIRECT and HELD modes:
DIRECT mode: Use ColorCut Pro to create your cut files & cut directly.
HELD mode: Standalone operation. Send repeat jobs to a USB drive, enabling you to remotely cut your jobs anywhere there is a power outlet (NO WIRES).
Media handling:
A4 (210 x 297mm), A3 (297 × 420mm), SRA3 (330 × 485mm), A3+ (320 × 480mm) and custom sizes
Custom sized media:
Media width (min-max): 180mm x 340mm / Media length (min-max): 279mm x 710mm
Job recognition:
Advanced QR code technology for instant file recognition and registration
Stand: included
Media storage: included
Media thickness: 140 micron (0.14mm ) – 350 micron (0.35mm)
Auto-sheet capacity: 1,000 sheets
CUTTING CONTROL
Mountable tools: dual tool functionality – 4 tools supplied as standard: Blade holder, dual creasing tool & pen calibration tool
Force/pressure: up to 750g delivered in 190 steps programmable through Intec ColorCut Pro cutting software
Maximum speed: up to 1060mm/second
REGISTRATION CONTROL & JOB MANAGEMENT:
Registration system: Vision3 – High resolution CCD vision system reads the registration marks on the media, comparing position with original digital file. Automatically adjusting cut lines to correct any scale or skew positional differences
Cut position accuracy: +/- 100 micron
Auto job recognition: Instant cut file retrieval, supported through QR code job recognition in conjunction with ColorCut Pro 5 software (supplied)
POWER REQUIREMENTS
Power supply: 100-240V 50/60Hz, 100W Avg. (320W peak)
Approvals: Complies with CE and RoHs directive
GENERAL
Weight: 136kg
Dimensions: when in use – 820 x 1300 x 1230mm (32.3 x 51 x 48.43 inches)
Varied or mixed job recognition: Y
