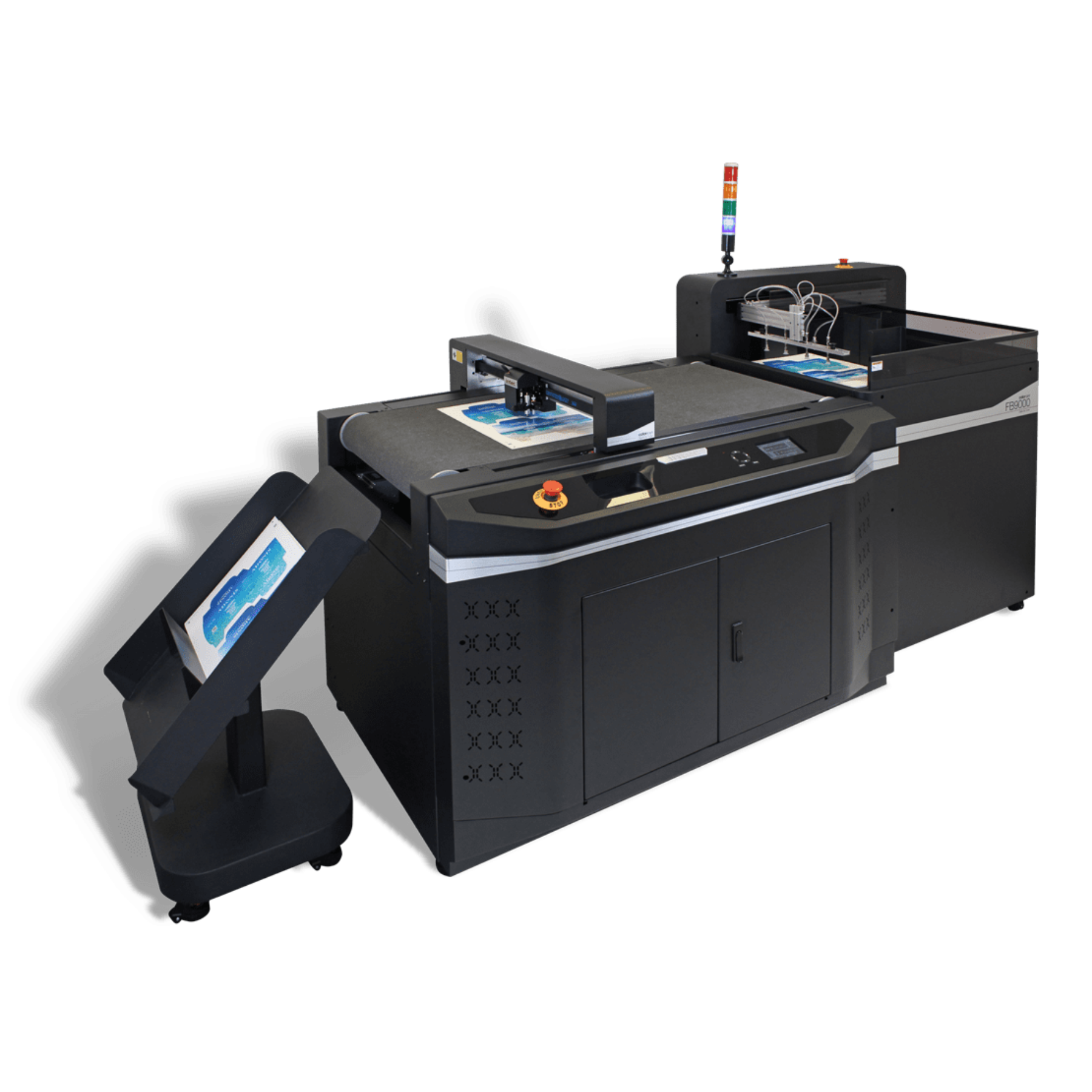

Intec ColorCut FB9000 PRO Automatic Digital Die Flatbed Cutter/Creaser
Ultra-fast performance, automatic Digital die flatbed cutter with class-leading forces for both die-cutting & creasing.
Intec’s premium, FB9000 PRO Automated Digital Die Cutter, delivers lightning-speed performance and unparalleled media control and has a highly sophisticated – but user-friendly production functionality.
Advanced component technology delivers creasing forces of up to 1.5kg and a cutting force of up to 1.2kg – perfect for media up to 1,000 microns.
Max media area:
(auto sheet feed) 480mm x 720mm
(manual placement) 550mm x 850mm (no mark scanning)
Effective cutting area:
(auto sheet feed) 480mm x 720mm
(manual placement) 495mm x 735mm
Registration system:
High speed CCD Camera – Vision3 Registration System, using live video feed and advanced 8th generation ARMS (Automatic Registration Mark System)
Job recognition:
Advanced QR code technology for instant file recognition and registration
Stand:Â integral and included
Media hold down method:Â Â 2 zone vacuum bed (High speed 750W vacuum pump included as standard)
Acoustic cover for pump:Â yes
Acoustic features:Â Acoustic cover/housing for vacuum pump, silencer for vacuum pump intake
CUTTING CONTROL:
Mountable tools: dual tool functionality, so any 2 tools can be fitted simultaneously – 3 tools supplied as standard: Blade holder, creasing tool & pen calibration tool
Force/pressure:
Cutting force: Up to 1.2kg
Creasing force: Up to 1.5kg
DIMENSIONS:
Uncrated: Length: 1,000mm (39.37″) Width: 2,500mm (98.42″) Depth: 1,600mm (62.99″)
