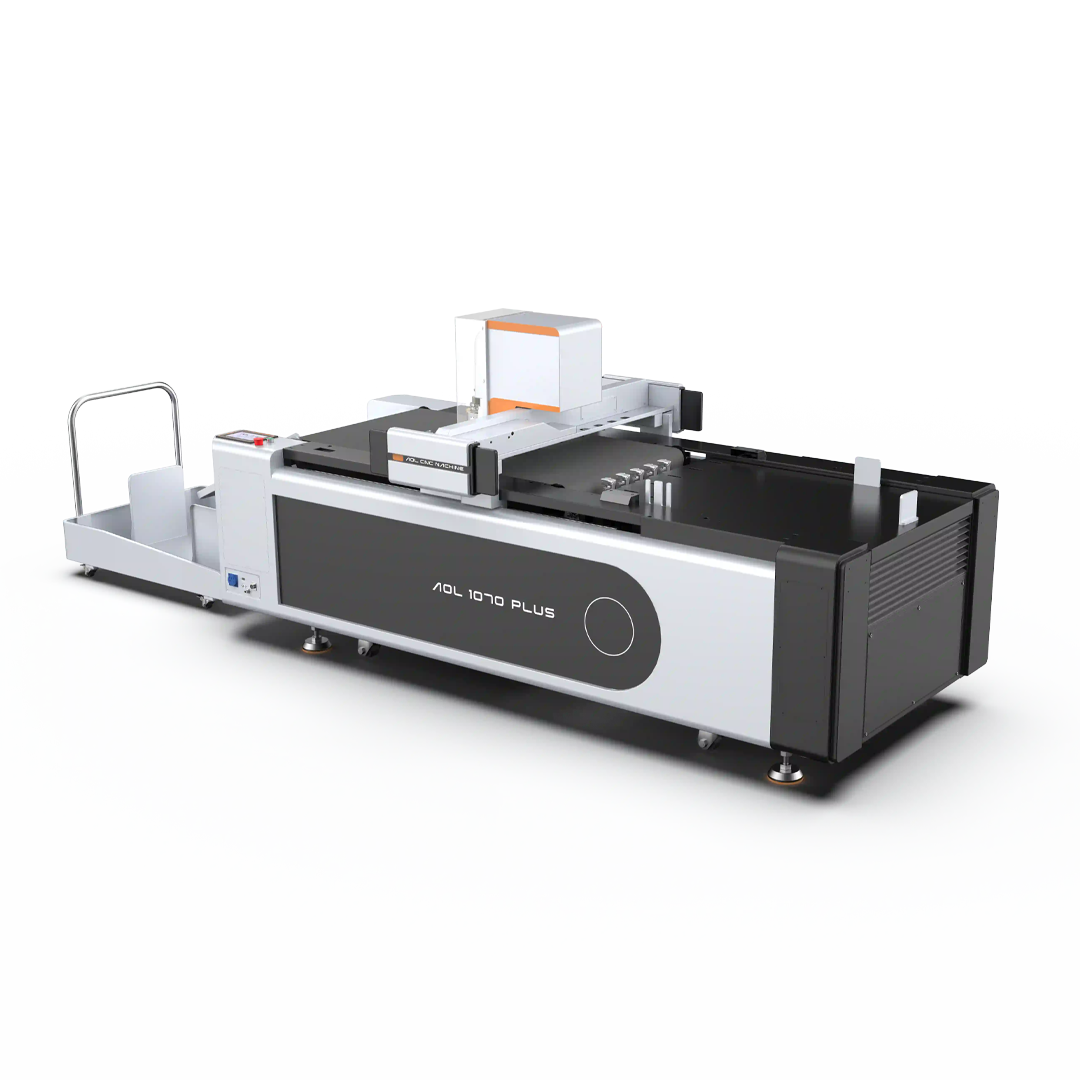

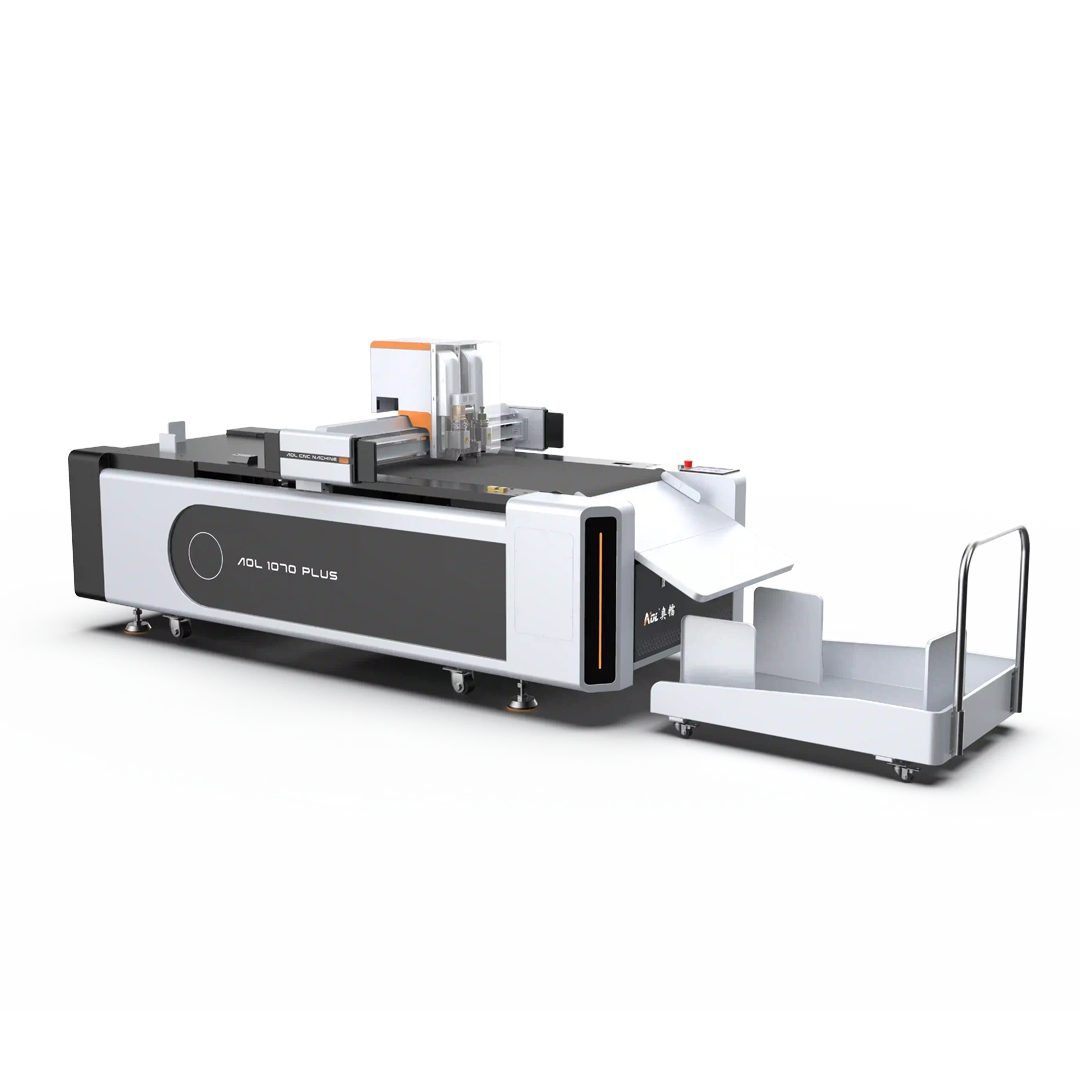

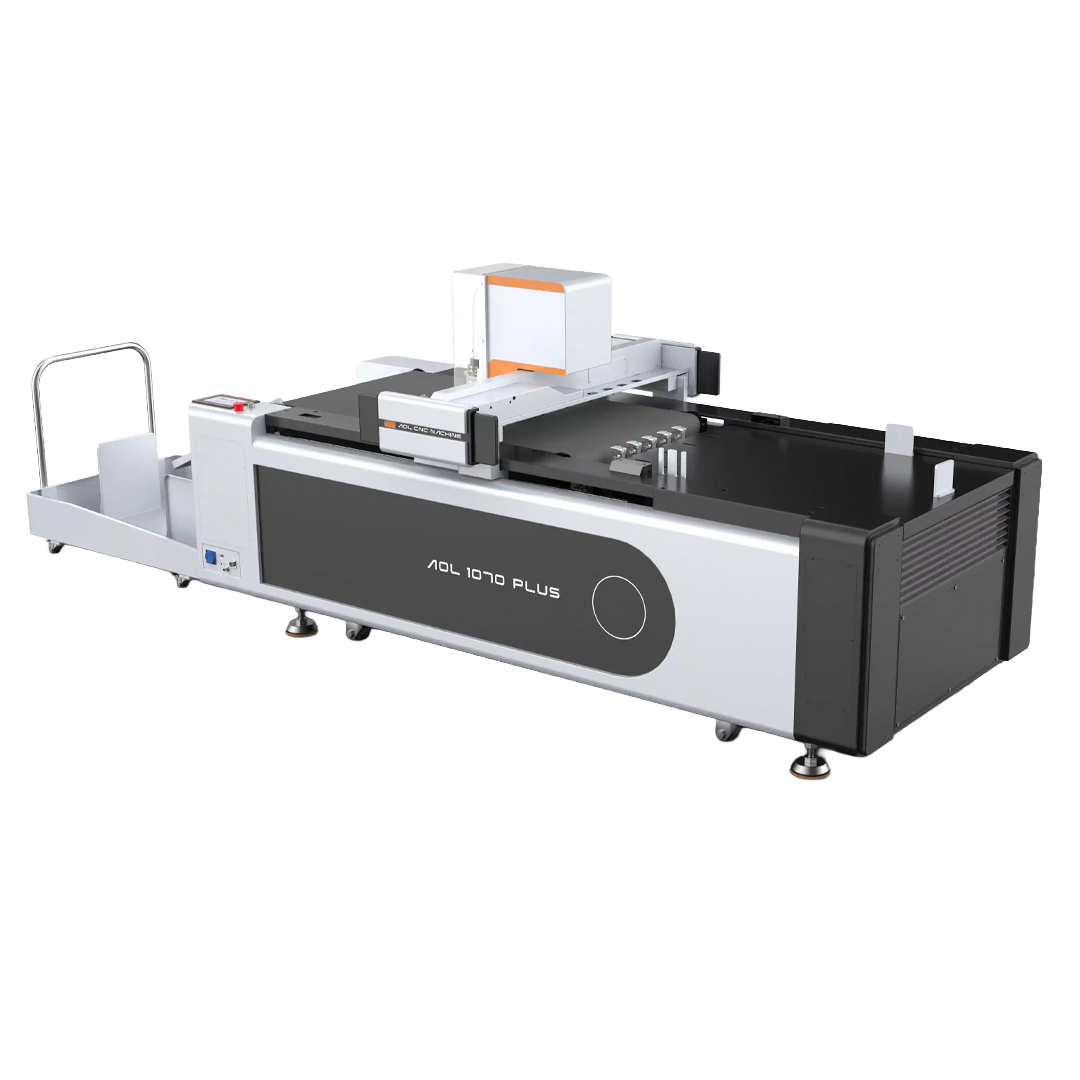

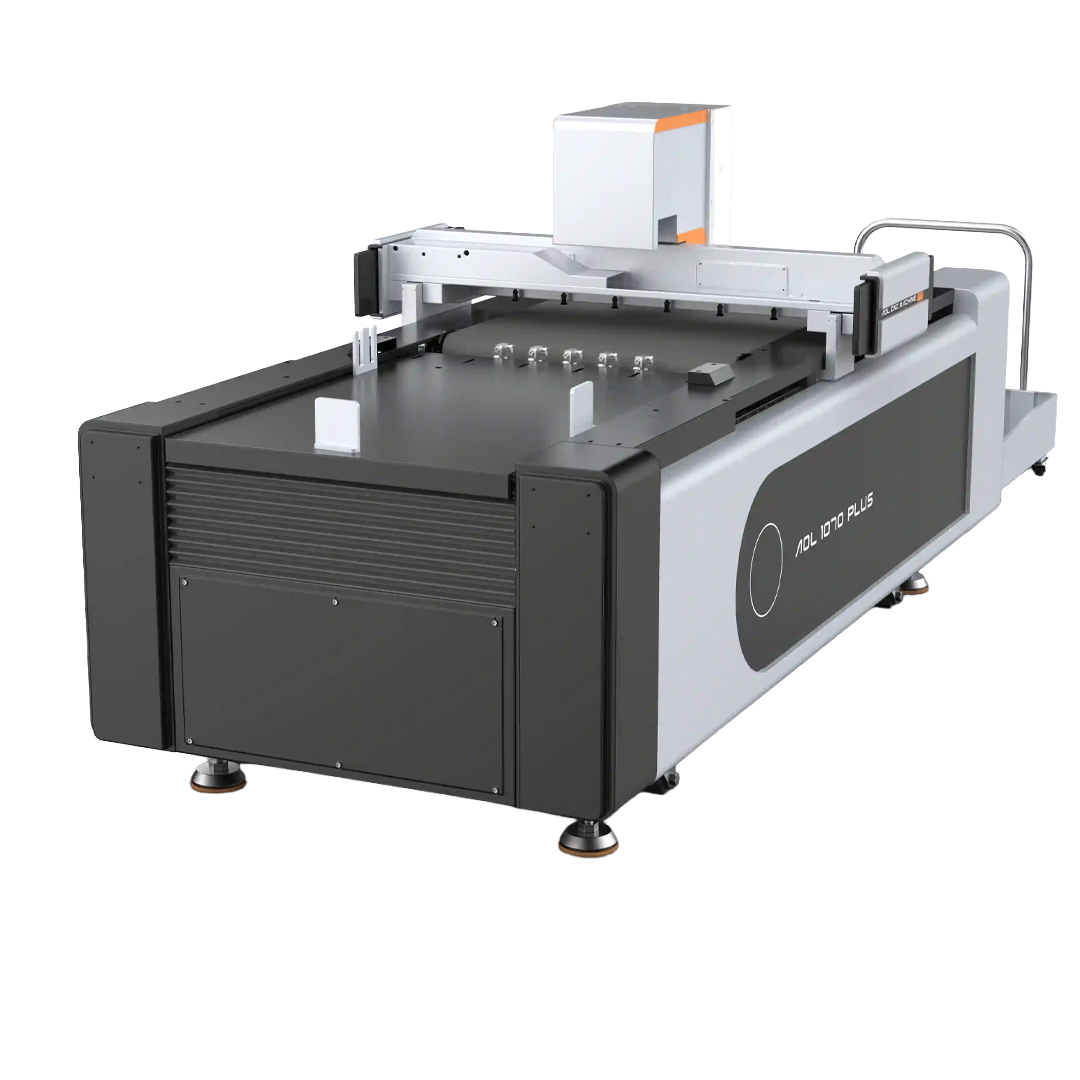

AOL 1070PLUS Digital Cutting Plotter

The AOL 1070 Plus Cutting Plotter provides a digital cutting solution for businesses producing signage, packaging and printed graphics.

With a maximum cutting length of 1,000 mm and width of 700 mm, the 1070 Plus supports materials including PVC board, PP board, white card, cardboard, paper, PVC, film and stickers. It offers cutting speeds of up to 1,200 mm/s and a maximum cutting thickness of 18 mm, depending on the material and its density.

The machine supports multiple cutting knives and a range of optional tools for cutting, creasing and marking. Repeat accuracy of ≤0.1 mm supports consistent output, while a 2.2 kW vacuum pump and infrared safety sensors assist day-to-day operation.

Key Features

• Maximum cutting length of 1,000 mm
• Maximum cutting width of 700 mm
• Cutting speeds of up to 1,200 mm/s, depending on material density
• Cutting thickness of up to 18 mm, depending on the material
• Repeat accuracy of ≤0.1 mm
• Supports multiple cutting knives
• Optional oscillating knife and drag knife tools
• Optional V-cut tool, crease wheel and cut-through knife
• Optional marking pen and CCD camera
• Suitable for PVC board, PP board, white card and cardboard
• Suitable for paper, PVC, film and stickers
• 2.2 kW vacuum pump
• Infrared safety sensors
• Imported digital servo motor, linear guide and belt transmission
• Supports PDF, PLT, DXF and HP-GL file formats
• HP-GL-compatible instruction system
• 220 V ±10%, 50 Hz power supply

Designed for Everyday Cutting Tasks

The 1070 Plus brings together a choice of cutting and finishing tools for businesses handling varied print and packaging jobs. Its supported file formats allow designs to move into the cutting workflow, while optional tools provide flexibility for different materials and finishing requirements.

Specifications are subject to change without prior notice.
