Keundo SQ-2513 UV Flatbed Printer
- Visual positioning multifunctional UV flatbed printer for precise batch printing of small items
- Supports CMYK / Lc / Lm / White / Varnish for vibrant colour and specialty effects
- Powered by Ricoh G6 printheads with optional Ricoh G5 or T3200 configurations
- Ideal for rigid and flexible media including acrylic, wood, PVC, glass, vinyl and more
Finance Available
Get the equipment you need now and pay monthly.
Available for qualifying businesses. Speak to our team to arrange a quote.

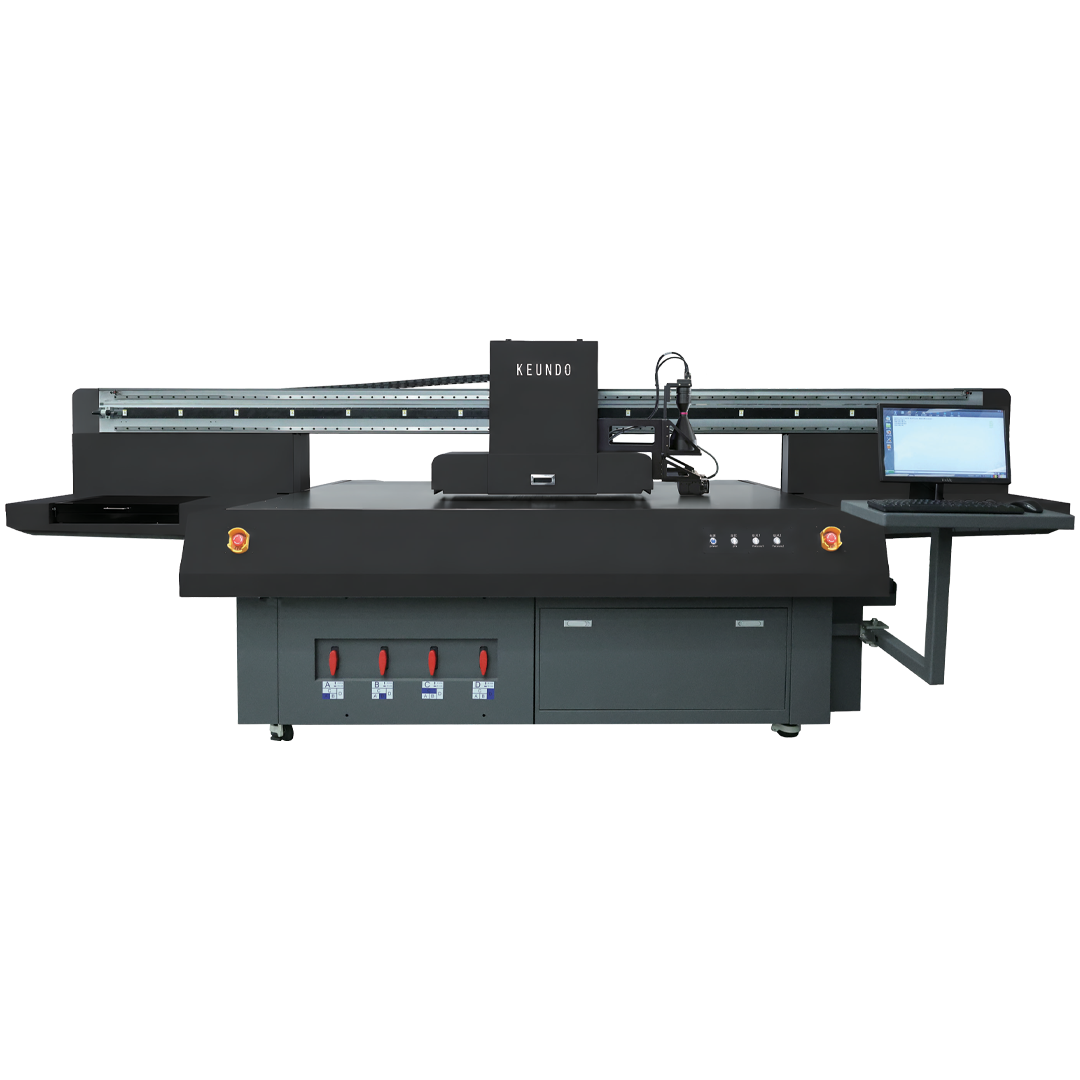

The Keundo SQ-2513 UV Flatbed Printer provides a wide-format printing solution for businesses producing signage, display graphics and printed panels.
With a 2,500 × 1,300 mm printing area and support for media from 1 mm to 100 mm thick, the SQ-2513 accommodates a range of production requirements. An optional 300 mm media-thickness configuration is also available.
The printer uses Ricoh G6 printheads, with Ricoh G5 and T3200 options available, and supports configurations of 3 to 14 printheads. CMYK, white and varnish ink options provide flexibility for different applications, while ICC-compliant colour control offers curve and density adjustment.
Key Features
- Printing area of 2,500 × 1,300 mm
- Supports media from 1 mm to 100 mm thick
- Optional 300 mm media-thickness configuration
- Ricoh G6 printheads, with Ricoh G5 and T3200 options available
- Optional configurations of 3 to 14 printheads
- Piezoelectric inkjet technology with variable dot printing
- Resolution options including 720 × 600, 720 × 900, 720 × 1,200 and 720 × 1,800 dpi
- CMYK, CMYK with white, and white with CMYK and varnish ink configurations
- Optional FM, FG, FY and FO ink colours
- Draft mode speed of 29 m²/h at 4 pass with CMYK and white
- Production mode speed of 18 m²/h at 6 pass with CMYK and white
- High-precision mode speed of 14.5 m²/h at 8 pass with CMYK and white
- Advanced servo motor for precision and speed
- Visual positioning system
- Precision linear motion system
- Reinforced frame for high-speed stability
- Printhead anti-crash device
- Independent vacuum zone control
- ICC-compliant colour control with curve and density adjustment
- PhotoPrint software, with ONYX and Caldera available as options
- USB 3.0 interface
Designed for Flatbed Production
The SQ-2513 combines a large printing area with independent vacuum zones to help hold media in position during printing. Its reinforced frame, precision motion system and visual positioning system support controlled production across a variety of flatbed printing jobs.
Specifications are subject to change without prior notice.
| Model | SQ-2513 UV |
|---|---|
| Printer Type | UV flatbed printer |
| Printheads | Ricoh G6; Ricoh G5 / T3200 optional |
| Printing Technology | Piezoelectric inkjet with variable dot printing density; Ricoh 5 pL |
| Printing Area | 2,500 × 1,300 mm |
| Printing Resolutions | 720 × 600, 720 × 900, 720 × 1,200 and 720 × 1,800 dpi |
| Number of Printheads | Optional configurations of 3–14 printheads |
| Software | PhotoPrint; ONYX / Caldera optional |
| Ink Type | UV ink |
| Ink Configurations | CMYK / CMYK + W / W + CMYK + varnish; FM / FG / FY / FO optional |
| Media Thickness | 1–100 mm; 300 mm optional |
| Colour Control | Complies with international ICC standards, with curve and density adjustment |
| Interface | USB 3.0 |
| Draft Speed (CMYK + W) | 4 pass: 29 m²/h |
| Production Speed (CMYK + W) | 6 pass: 18 m²/h |
| High-Precision Speed (CMYK + W) | 8 pass: 14.5 m²/h |
| Maximum Power | 5 kW |
| Power Supply | AC 220 V, 50–60 Hz |
| Operating Temperature | 18–28°C |
| Operating Humidity | 40–60%, non-condensing |
| Machine Dimensions | 4,210 × 2,080 × 1,385 mm |
| Machine Weight | 1,800 kg |
