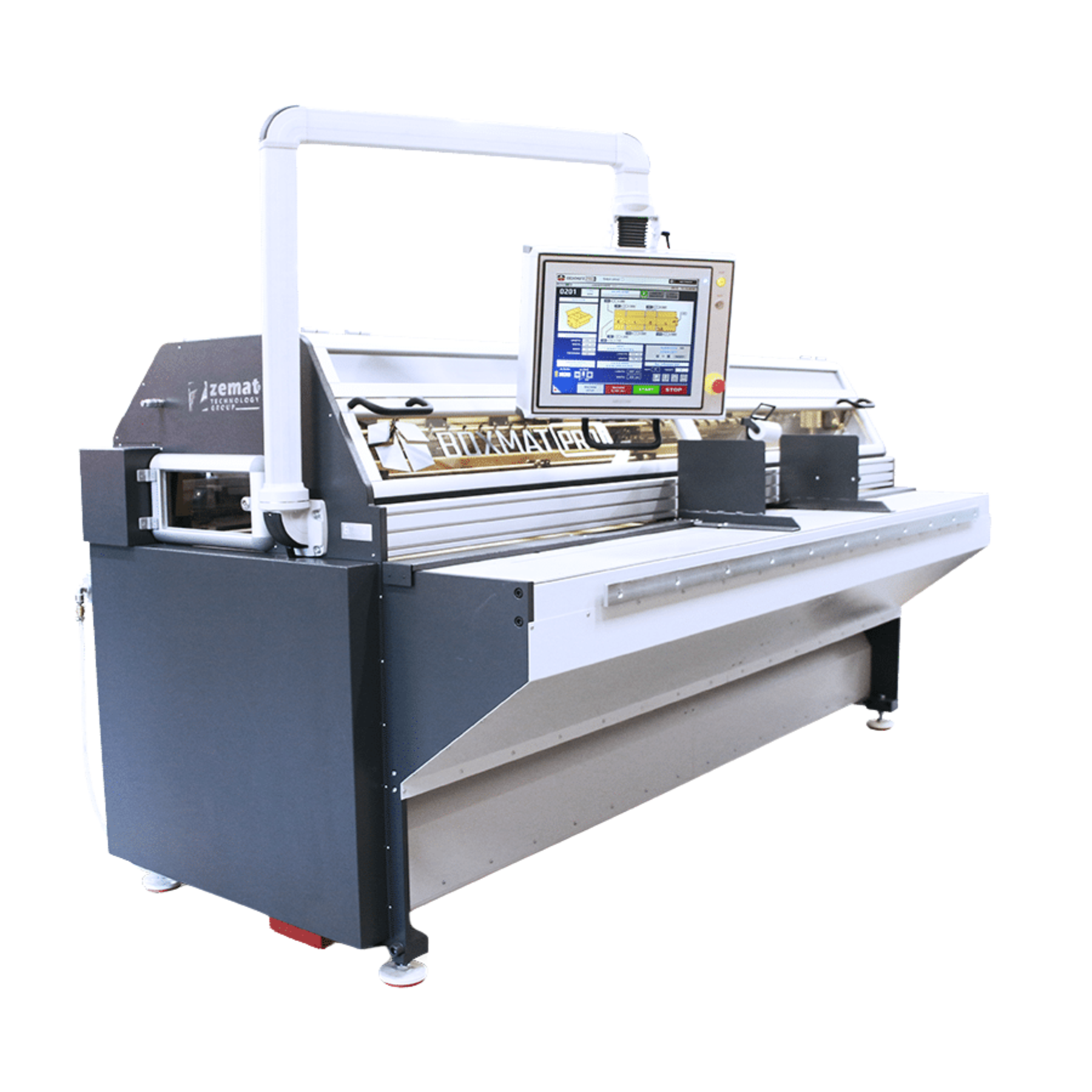

BoxMat PRO BoxMaker
The most versatile box making machinerevolutionizing the short and medium runs serial production of corrugated cardboard boxes.
All settings are entered directly from a touch screen panel with no manual tool adjustment. In less than 1 minute the machine can be reprogrammed for any of the 100 box styles. Slitting, scoring/creasing, gluing and printing is all done in one pass on one compact machine – without the need for additional equipment!
|
Cardboard used:
|
Single and double wall (triple wall with limitations)
|
|
Types of boxes:
|
Preinstalled 50 FEFCO styles + free style
|
|
Power supply:
|
3 x 380/415/480 V (USA: 3 x 480 V / 20 A)
|
|
Maximum board size:
|
2400 mm (94”) width x 10000 mm (394″)
|
|
Minimum board size:
|
250 mm (10”) width x 650 mm (25”) length
|
|
Distance between slotting knives:
|
70 – 2000 mm (2¾ – 79”)
|
|
Slot width:
|
8 mm (5/16”)
|
|
Sectional slotting knives:
|
100 mm (4”) each
|
|
Standard slotting knives length:
|
500 mm (20”) each side
|
|
Min./max. slotting knives length:
|
200 – 700 mm (8 – 27 1/2”)
|
|
Footprint (L x W x H):
|
3300 x 1600 x 1600 mm (130 x 63 x 63”)
|
